A world first in surface-mountable illuminating pushbutton switch

Switch with features new and never before seen

A world first in surface-mountable illuminating pushbutton switch
KA series

A world first in surface-mountable illuminating pushbutton switch
K2 series

A world first in surface-mountable illuminating pushbutton switch
K9 series

Innovative Surface-mountable terminals switch(SMT).

Surface-mountable terminals switch can be mounted directly by mounting machine as same as other surface-mounted component.
SMT switches can be precisely mounted, so it's unnecessary to correct or repair of slanting and twisting.
Additionally, It has not protrusive terminals on the reverse side of printed-circuit board, it's unnecessary cutting work of the terminals.

 Sunmulon SMT switch            Usual DIP switch


DIP switch often need to correct or repair of slanting and twisting, cutting work of the terminals after mounted.

Reduction in mount working cost of more than 50%

It can achieve significant mount working time reduction from traditional manual fabrication.

SMT switch DIP switch

Mounted 31 pcs by mounting

machine
11 sec/pc Masking 13 sec/pc
Alignment 10 sec/pc
solder bath in flow soldering 4 sec/pc
Peal off a heat-resistant sticker from the switch block and assemble the lighting block . 7 sec/pc Retouch for slanting and twisting parts. 11 sec/pc
  18 sec/pc   38 sec/pc

Working time of mounting operation per- SMT switch (18sc/pc) can reduce more than 50% from DIP switch (38 sec/pc). ※The data form the calculations of our own.

KA, K2, K9 Series Features

Advantage of SUNMULON SMT switch

*Heat resistant switch block for SMT production.

*Accurate mounting layout after SMT.

*No need of modification by hand working after SMT.

*Most suitable for overseas production because of automated way.

*More than 50% reduction of mounting cost comparing to dip type.

Not only cost but also quality will be improved by SMT.

■Stable active position, long operating life, Smooth operation feeling

KA, K2  Electrical life More than 3,000,000 operations

K9     Electrical life More than 300,000 operations

【KA, K2 Series switch operating characteristic curve】Total travel 3.5mm(MAX 4.0mm)

*Two types of switching action - with or without audible click.

【K9 Series switch operating characteristic curve】Total travel 1.5mm(MAX 2.0mm)

 *Two types of switching action - with or without audible click.



■Smart, unified Design
KA, K2  Eight options available: 17.4mm size (raised dot or concave button),
       12mm & 15mm size (flat button, concave button, raised dot button).

K9    9mm size (flat button)

  9mm 12mm 15mm 17.4mm
flat
button
K9 K2 KA K2 KA -
concave
button
- K2 KA K2 KA KA
raise dot
button
- K2 KA K2 KA KA

K9 K2 KA KA
9mm 12mm & 15mm square button 17.4mm square button

flat button

 flat button

concave

button

raise dot

button

concave
button

raise dot

button


■Stable, consistent color and brightness

KA    Multicolored RGB and dual-color (Red/green, red/super green) LEDs allow any colorto be emitted.

K2, K9  Mono-color(Red, Green, Yellow) and dual-color (Red/green, red/super green)

KA, K2, K9  Red, Super green, dual-color(Yellow)

KA Multicolored White and Blue

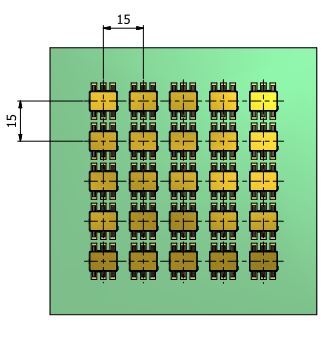

■Minimum pitch in case of continuous and high density mounting

    KA  Minimum pitch 18mm          K2, K9  Minimum pitch 15mm

  KA K2 K9
Button size □17.4, □15, □12 □12, □15 □9
Electrical life 3 million operations 3 million operations 300,000 operations
High density mounting 18mm pitch 15mm pitch 15mm pitch

Surface-mounting Image ≫≫【Please click here and see the movie for more details】

①Print the solder paste on the printed circuit board.

②Up to 96 units of switch block are put in the dedicated tray.

If ordered 32 units or more, the order will be delivered in a tray.


③Mount the switch block to the printed circuit board from tray by mounting machine.

④Dissolve the solder paste with the reflow soldering machine and finished soldering.

Slanting and twisting during mounting does not occur by our own know-how.

You can align switches in a straight line without particular modifications.



⑤Peel off a heat-resistant sticker from switch block,
and then assemble with the lighting block.


Easy to assemble by modular switch concept, composed of switch block and lighting block.


 ⑥Surface-mounting finished.

Please see the surface-mounting process movie.

Evaluation units for surface mounting are available(charged).

For more information, please refer to the above PDF DATA.
