Indicator
Introduction of various color LED, cover and filter according to purpose.
LED color
LED colors are Red, Green, Yellow, Super-Blue, Super-White, Super-Green.
SP, CL and LL series have multi-color LED.
| Red | Green | Yellow | Super-Bule | Super-White | Super-Green | |
| LED color |  |
 |
 |
 |
 |
 |
| LED color model | 7(70) | 8(80) | 9(90) | 14 | 16 | 18 |
Sunmulon's yellow is orange yellow (amber).
Cover and filter color
Cover colors are Clear, Red, Green, Yellow, Blue, Milk-white, Lemon Yellow.
AH and YH series have Lemon Yellow button.

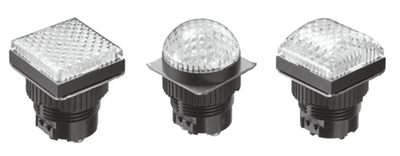

MLC has Diamond-cut cover (transparent) ML has Lemon Yellow Dome cover.
Filter colors are Red, Green, Yellow, Blue, Milk-white, Lemon Yellow.
AH, YH, HL, ML and TL series have Lemon Yellow filter.
| Transparent | Semi-transparent | Red | Green | Yellow | Blue | Milk-white | Lemon Yellow |
|
| Flat Cover |  |
 |
- | - | - | - | - | - |
| Dome Cover | Diamond-cut （MLC） |
- |  |
 |
 |
 |
|
 |
| Filter | - | - | |
|
|
|
|
|
| LED color combination |
All LEDs | All LEDs | Red | Green, Super-Green |
Yellow | Blue | All LEDs | Green, |
Sunmulon's yellow is orange yellow (amber).
Illumination differences by a combination of cover and filter
A filter is unnesessary for the color cover, but a filter is necessary for the Clear cover (transparent).
A combination of cover of same color as the LED (or Milk-white cover) without filter, or
a Clear cover with filter
of the same color as the LED (or Milk-white filter) is common without MLC's Diamond-cut cover.
Milk-white cover（or Clear cover with Milk-white filter）does not know the color of the LED
unless it lights up.
Recommended when you want to distinguish the cover color by LED lighting up.
| Clear Cover with Milk-white filter | Clear Cover with Color filter | Negative illumination Semitransparent Black cover with Black silk printing filter |
|---|---|---|
 |
|
 |
 |
 |
 |
 |
 |
 |
Lighting OFF = Milk Lighting ON = Green Softly color illuminating by Milk color filter |
Lighting OFF = Green Lighting ON = Green Brightly color illuminating by Green color filter |
Lighting OFF = Black Lighting ON = Green Only engraved characters are displayed by LED color. |
Click an image to see lighting ON, and double click to see lighting OFF.
