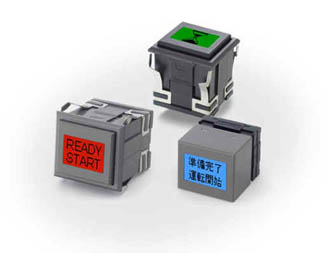

VD LCD DISPLAY PUSHBUTTON SWITCH

OPERATE WITH MESSAGE

Clear LCD (Message) and Reliable Pushbutton
Switch (Operation) combined.

Wide view angle available with 33 X 64 dots (2,112dots) FSTN LCD, which can display
maximum 12 characters (alphabets) X 4 column and graphics.
Mono-Color(Red, Green, Yellow , Super Blue, Super Green) ,
Dual-Color(Red/Green), Multiple-Color (RGB) back lighting LED provided.
Negative display mode (Characters come out) gives good visibility.
The switch has cross bar contacts which assures excellent reliabilitys0pecially for dry circuit.

How to input data and display:

Use PC with our exclusive soft data (VD-BUILDER=photo).

It is possible to write characters, graphics also indicate font, size, LED
color, scrolling.

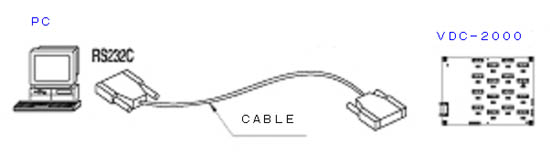

Writing characters & graphics, download to the Control Board
(VDC-2000=photo)

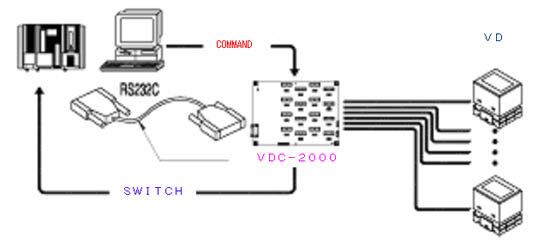

Then, give the commands from PC, Host Computer, Micro Computer, etc.
to display the data.
