Product Training Module

Introducing Sunmulon Product Solutions

• Industry-specific applications for switches and indicators
• Easy to understand examples of the use of respective switches and indicators.

• PTM of Sunmulon Solutions(PDF)

SMT-compatible Switch KA, K2 ,K9 Series

• What is SMT-compatible switch?
• Difference in Mounting Method between "Reflow" and "Flow" Soldering
• Advantages that SMT can offer to customers

• PTM of KA, K2, K9 Series(PDF)

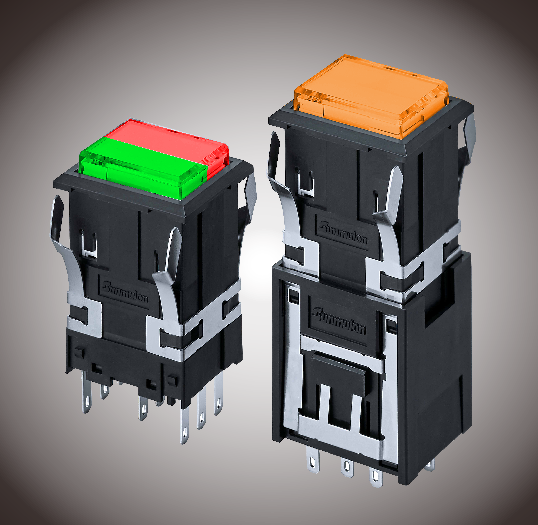

SP Illuminated Pushbutton Switch

• Abundant in line-up with 256 colors and 4-Split-Face
• Adaptable with wide range of illumination voltage
• Replaceable from Series 2

• PTM of SP Series(PDF)

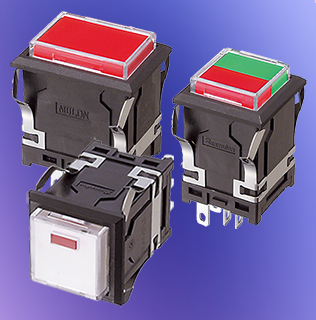

EH Illuminated Pushbutton Switch

• Depth behind panel : Only 22.5mm
• Button Size: 14.2mm square type, 14.2 X 20.4mm rectangular type
• LED illumination for Full-Face, Split-Face, Dual-Color available.

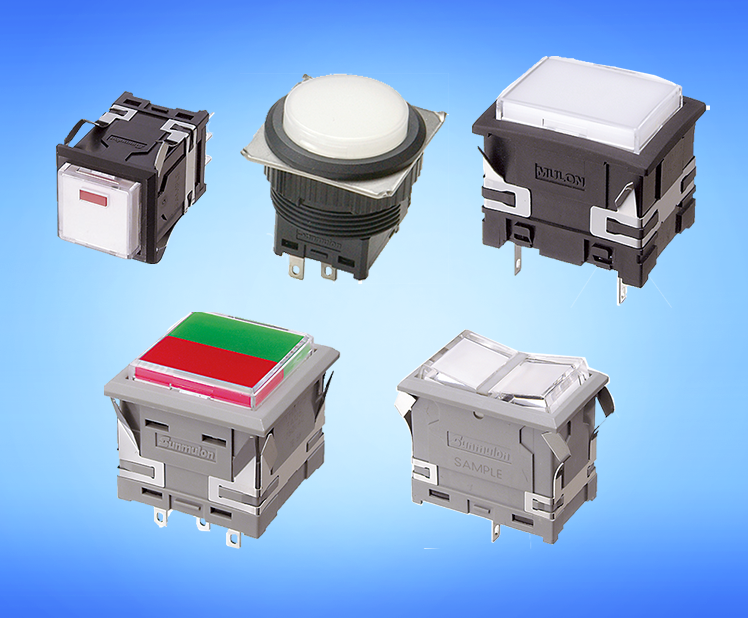

22.5mm Series

• Various type of button, illumination, available in same depth 22.5mm
• Sunmulon provides "Space saving" for your products

• PTM of 22.5mm Series(PDF)

Connecting solution

• Solder, tab, Socket, Connector, Surface Mount
• Sunmulon provides various connection way for your assembly work

• PTM of Connecting solution(PDF)
